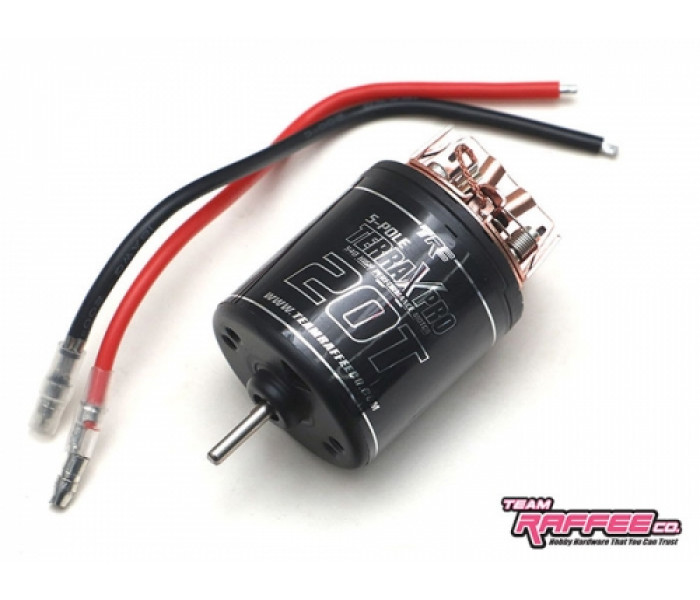

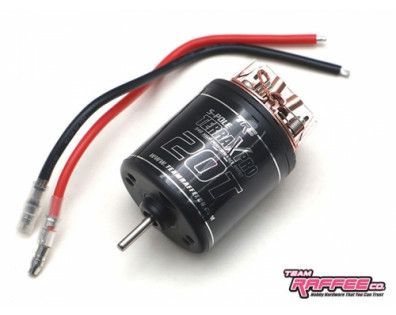

Terra X™ Pro 20T Balanced 5-pole 540 High Performance Brushed Motor 1420Kv

LOADING IMAGES

Product Model: All

Part Id:#TRC/302623-20T

Availability: In Stock
USD $23.00
Qty:

Description
Reviews (4)

Want brushless motor smoothness in a budget? This is what the TRC Terra X Pro 5-Pole 20T 540 High Performance brushed motor is all about. The 5-slot armature provides great low-end control. This is best suited for R/C crawlers that require incremental power to navigate through difficult terrains.

Features:

Balanced 5-slot armature
Very smooth power and control at low speed
High strength magnets for large amounts of torque
Excellent torque and long-run times
Direct-Solder Wiring Tabs for flexible mounting options
Dual-ball Bearings Design for an efficient drivetrain
Rebuildable design with an easily accessible commutator and replaceable brushes and springs

Specification:

Type: Brushed
Size: 540
Poles: 5
Turns: 20T
Equivalent speed to 45T 3-Pole 540 Brushed Motor
RPM: 9100 @ 7.2V / 2.9A (at no load)
RPM: 8600 @ 7.2V / 4.6A / Torque 155.3g-cm (with load)
At Stall Extrapolation: Torque 2821.5 g-cm / 34A
At maximum:
- Efficiency: 66.5%
- Speed: 6970 RPM
- Torque: 591 g-cm
- Current: 9.8A
- Output: 47.2W
