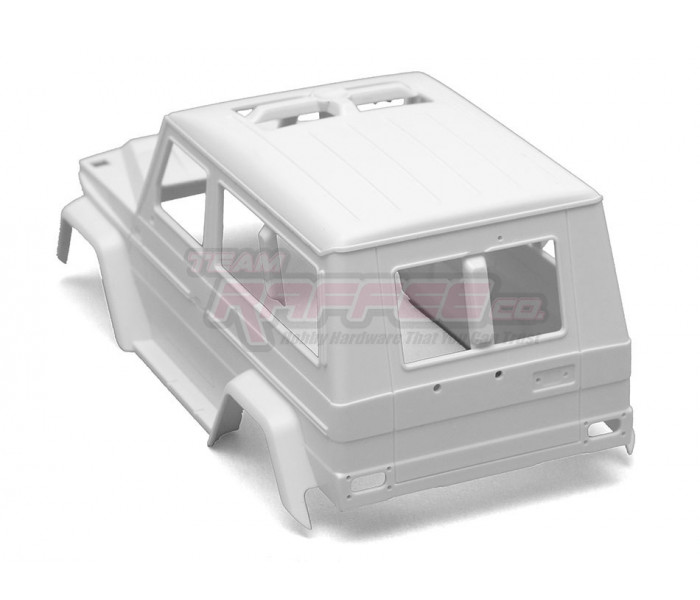

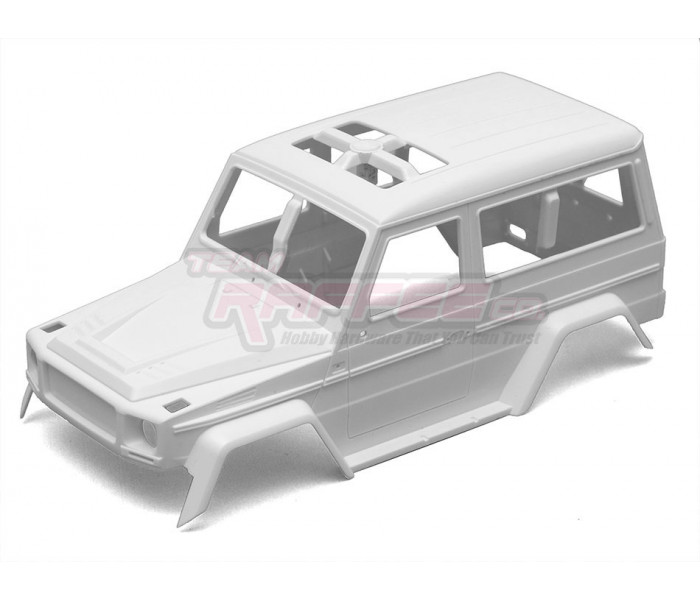

This is a complete G-Class 2-Door Hard Body set for the Kyosho Mini-Z 4x4.

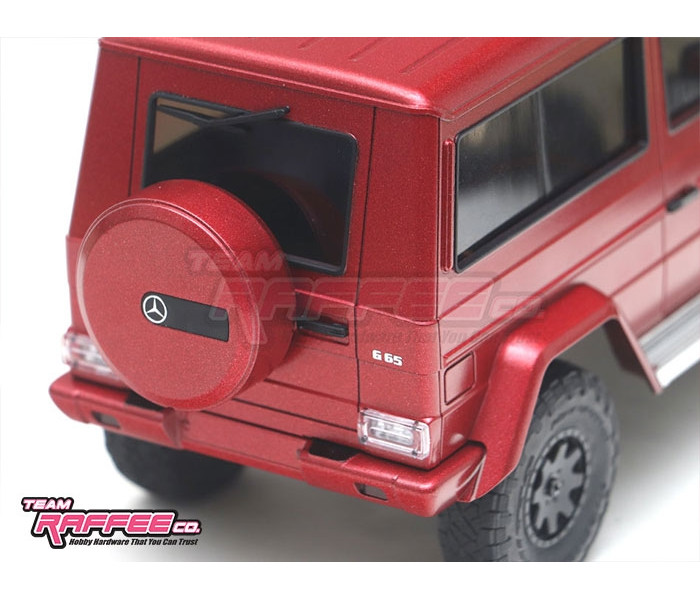

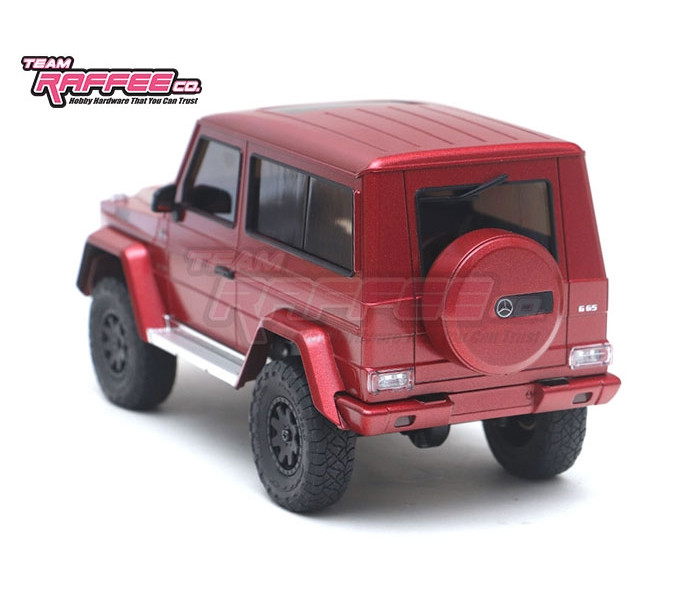

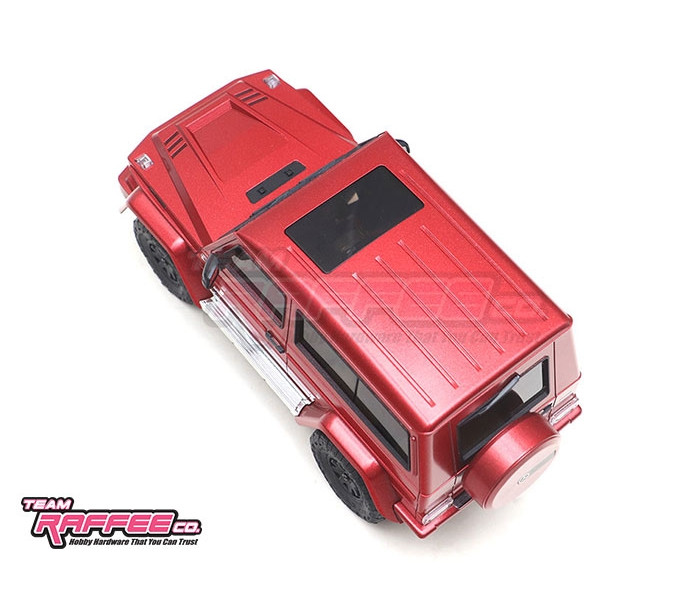

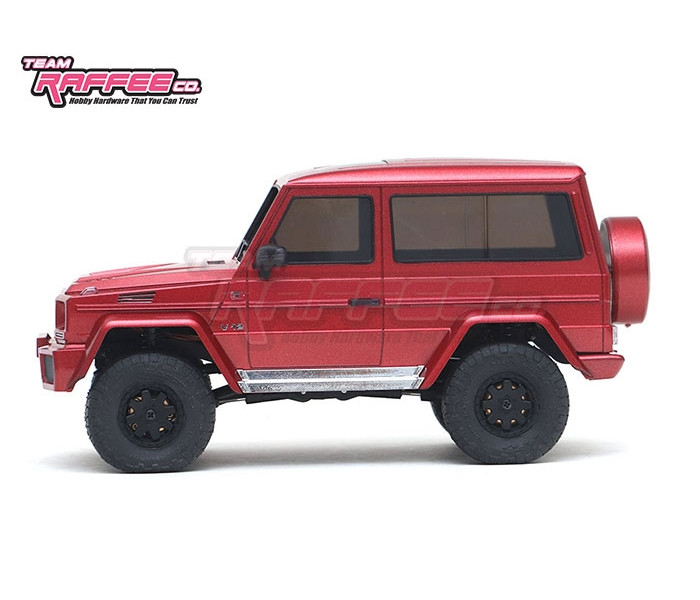

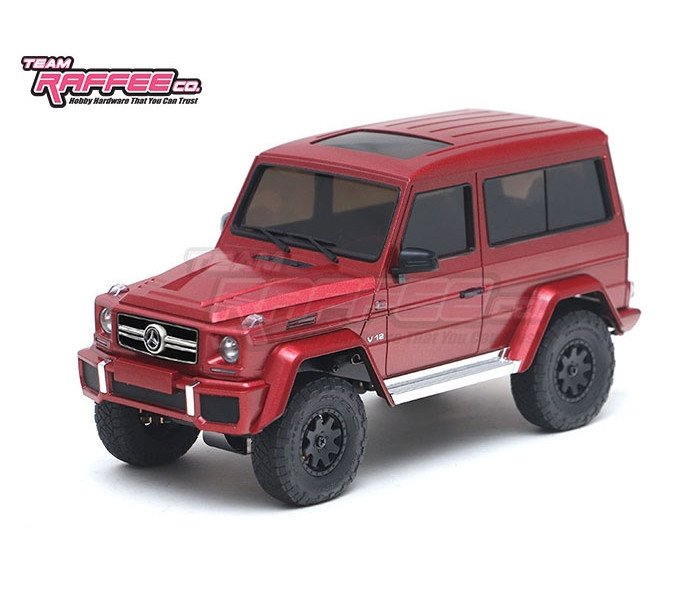

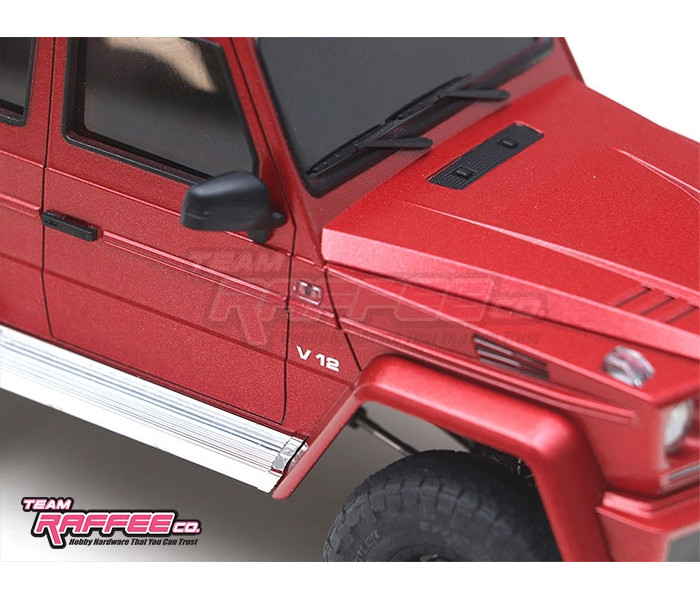

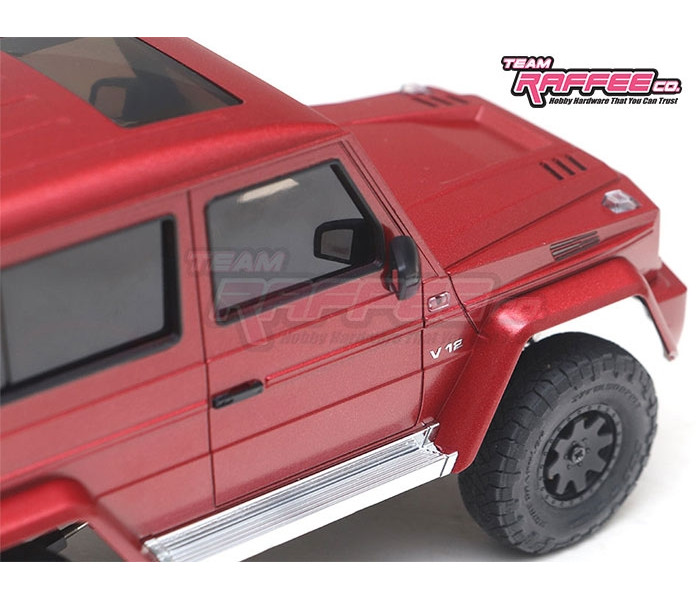

The G-Class 2-Door body shown here is mounted on a Mini-Z 4x4 Hilux 4Runner chassis. Easy to mount. With a few original parts, you can also build a stunning G-Glass!

Specification:

Length: 208mm
Width: 96mm
Height: 75mm
Wheelbase: 120mm
Weight: 80g

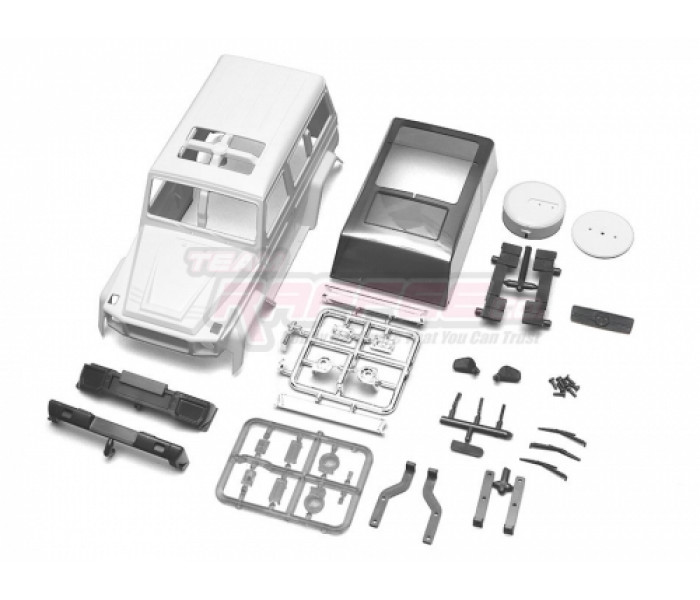

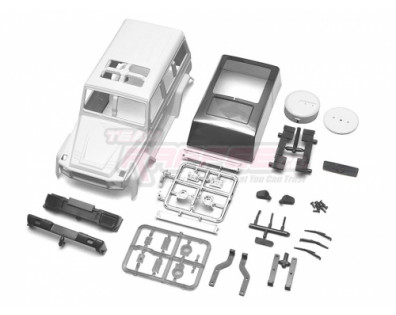

Includes:

Body
Front bumper
Rear bumper
All the chrome parts
Door handles, wing mirrors, side steps
Light buckets, spare wheel cover

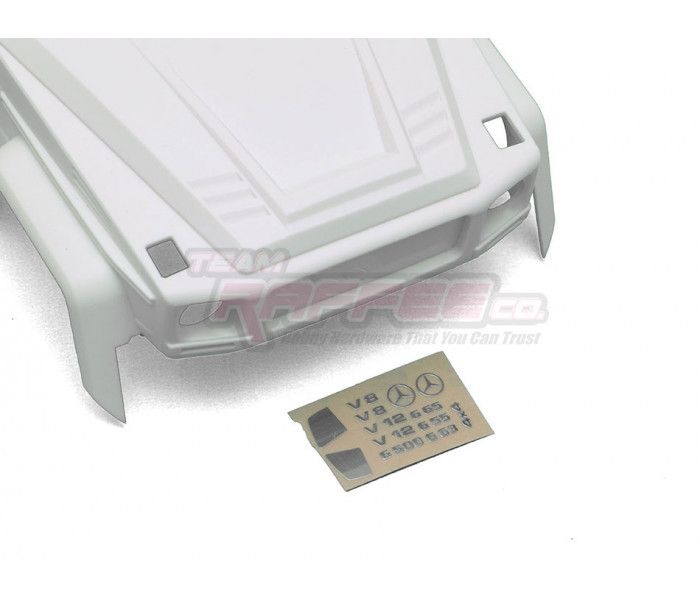

Decals
Light buckets
Pre-tinted windows
Instruction manual

To mount this body on the Jimny Mini-Z 4x4 chassis:

1. Remove the front and rear bumpers and bumper mounts
2. Install the G-Class front and rear bumpers and mounts
3. Optional - the G-Class seen here uses the larger Hilux 4Runner wheels and tires (KYA-MXTH001 Premounted Tire/Wheel 2pcs Toyota 4Runner)

To mount this body on the Hilux 4Runner chassis:

1. Lengthen the upper Y-links with this (KYA-MX007 Suspension Parts Set).
2. Lengthen the lower links, option of (KYA-MX017 Tie Rod Set) or (KYA-MXW002R Aluminum Link Rod Set WB 120mm)
3. Mount the rear shock towers in reverse position
4. Remove the front and rear bumpers and bumper mounts
5. Install the G-Class front and rear bumpers and mounts

This item is available for distribution from AsiaTees.com
